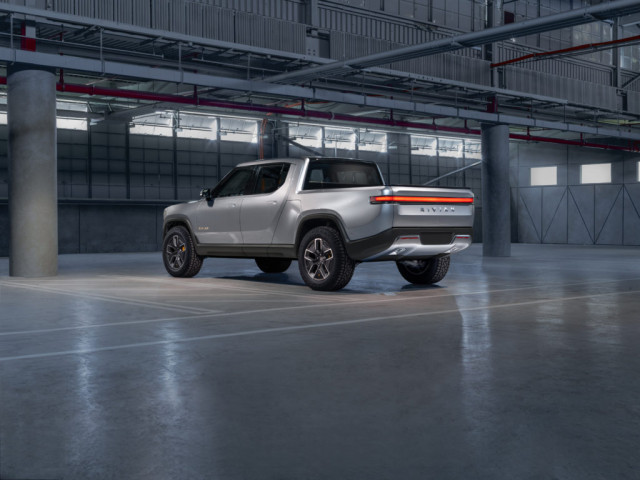

Rivian R1T electric pickup concept
The Michigan-based electric-vehicle hopeful Rivian claims that its upcoming R1T pickup and R1S sport-utility vehicle, both revealed last month around the LA Auto Show, will be able to recharge up to 200 miles of range in just 30 minutes—provided they’re connected to a DC fast charger capable of delivering 160 kw.
In the not-too-distant future, Rivian’s trucks may be revamped to effectively halve that charging time, when connected to the right charging hardware.
The claim brings to mind the Porsche Taycan (Mission E) and the closely related Audi e-tron GT. They’re two of the only other vehicles, as of yet, confirmed as having 800-volt architecture throughout.
DON’T MISS: Rivian R1S electric SUV goes family style with 7 seats, 410-mile range
While Rivian’s trucks are built around 400-volt components, they might be the first electric vehicles that have actually been designed from the start for an upgrade to 800 volts.
“To get to the 300-kw [charging] level that everyone wants to be at—of course us included—voltage levels have to go up to get the current levels down,” said Rivian CEO RJ Scaringe to Green Car Reports, in a long and far-reaching interview last month at the LA Auto Show. “So we’ve architected everything in the system to see higher voltages at the right time and therefore go to much higher levels of charging…but that won’t be at day one.”

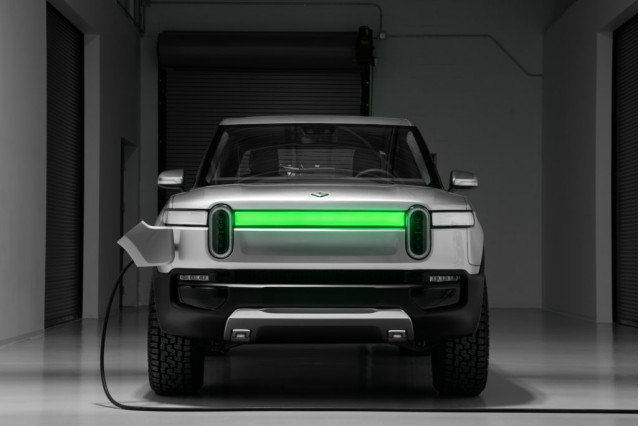

Rivian R1T electric pickup concept
The leap to double the voltage can be accomplished, Scaringe outlined, by doubling the S count [the number of cells connected in series] and halving the P count [the number of cells connected in parallel]. “So we go from a peak of 450 volts to 900,” he said.
Rivian already has that double-voltage, peak 900-volt (nominal about 800V) battery pack in development, and it’s actually designed all the connectors and bus bars for production.
CHECK OUT: Electric upstart Rivian plans for dealers, but not to sell trucks
Rivian’s battery pack will have predictive modeling to pre-condition the pack (warm it or cool it) ahead of anticipated DC fast charging. According to a recent report by Teslarati, the battery is structured around modules that are each 15 kwh and contain 864 cells, in two layers, with denser packaging than in other EVs. The cells themselves are cylindrical 2170 cells—the same format as is used in the Tesla Model 3, but Rivian is anticipated to source them from LG Chem.
The cooling approach is different than what anyone else is using. Rivian’s two levels are separated by a 0.3-inch aluminum plate, with coolant running through it, part of a single cooling system. Most other packs contain the metal plate underneath—doubling as a heat sink and protection—but Rivian is instead opting for a carbon-fiber ballistic shield for the bottom of the pack.
Rivian R1T, R1S chassis
It’ll be some time before the battery pack goes to 800-volts, however, Scaringe underscores. “The reason for that is the supply base of all the high-voltage ‘stuff’ in the vehicle, the electric compressor, DC-DC converter, is all built up around a sub-450 world,” he said. “As the world builds out 800-volt capability, everything’s architected so very quickly we can switch over to 800 volts.”
Stepping up the voltage isn’t a matter of just swapping in a few components here or there. Relatively simple differences that need to be accommodated for, such as the placement of connectors and the spacing of leads, need to be planned from the start.
